Soul Steam Room

Soul Steam is an evocative cabin where it is possible to totally immerse oneself in steam thanks to a professional system of direct inlet. The cabin reaches a temperature of 43°-45°C and a humidity rate of 98% in just a few minutes. Thanks to its small dimension and to highly innovative technology, it suits every environment, enhancing it with unparalleled functional beauty.

Customisable with stylish details and evoking warm colours, it is an elegant and versatile solution.

Design: Cristiano Mino

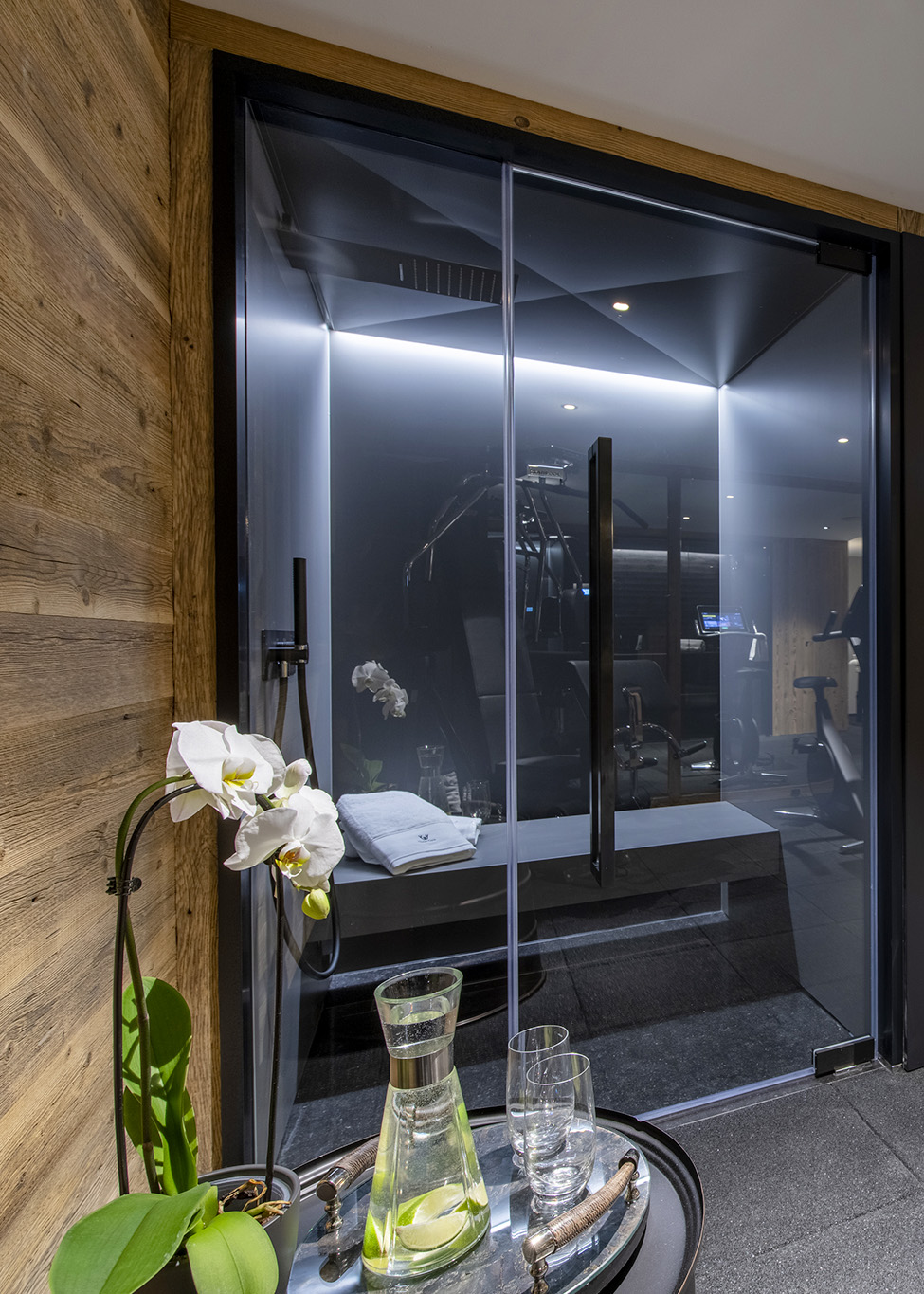

Soul steam 1 Soul Steam 1
Soul steam 4 Soul Steam 4
Soul Steam 2 Soul Steam 2

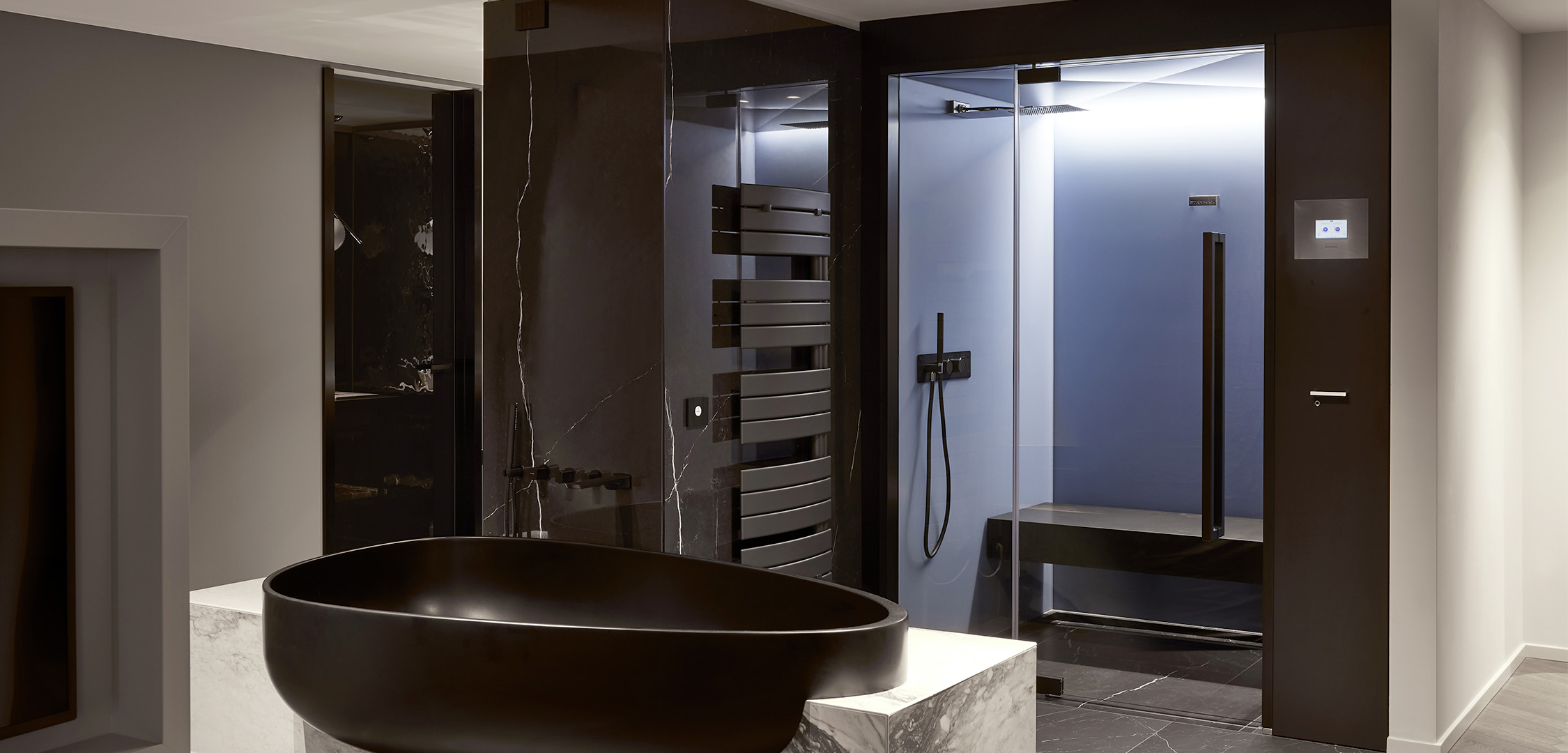

Soul steam shower 4 Soul Steam Shower 4
Soul steam shower 5 Soul Steam Shower 5
Soul steam 5 Soul Steam 5

Technical specifications

In this section, you will learn more about product details, display the coverings and download the technical documents available.

  • Data sheet
  • Coverings
  • Download
close

Data sheet

External dimensions with remote technical room (cm)

150W X 150D X 233H
195W X 150D X 233H
195W X 195D X 233H
285W X 195D X 233H

Minimum overall dimensions for installation with remote technical room (cm)

160W X 155D X 240H
205W X 155D X 240H
205W X 200D X 240H
295W X 200D X 240H

Voltage

230 VAC 1P+N+PE / 400 VAC 3P+N+PE

Max consumption (kW)

3,5 - 12,5

Temperature

43 - 45 °C

Relative humidity

98%

Heating

Direct steam inlet

Lighting

Ceiling-installed white led light bar

Music kit

Integrated music kit with preset selection of Spa Music by Starpool and audio mp3 player, with USB, audio jack input and SD Card.
Bluetooth technology for personal versions.

Door

Tempered glass, th. 10 mm
Door handle steel/steel

close

Coverings

Grey Matt

Walls and benches in grey matt gres porcelain

White Matt

Walls and benches in white matt gres porcelain

Green Matt

Walls and benches in green matt gres porcelain

Greige Matt

Walls and benches in greige matt gres porcelain

Brown Matt

Walls and benches in brown matt gres porcelain

Black Soul

Walls in black satin glass, bench in black solid surface

White Soul

Walls in white satin glass, bench in white solid surface

Green Soul

Walls in green satin glass, bench in black solid surface

Purple Soul

Walls in purple satin glass, bench in black solid surface

Blue Soul

Walls in light blue satin glass, bench in black solid surface

close

Download

Catalogue

Download

Layouts

Download

Coverings

Download

DWG

Download

BIM

Download
